24100 Series

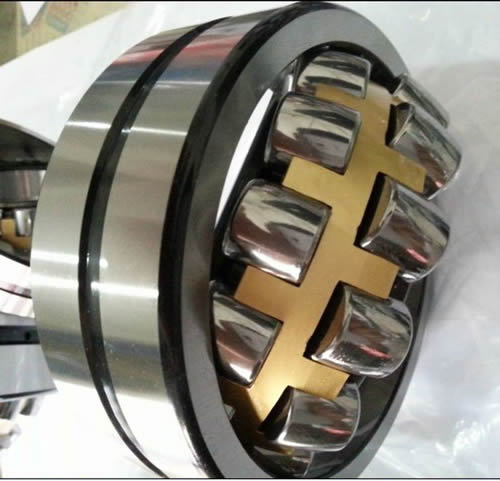

Spherical roller bearings are dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations. And with the industry’s highest load rating and production coming from a factory near you, there’s no reason to look anywhere else for Spherical roller bearings Spherical roller bearings are inherently self-aligning and very robust. The two rows of rollers make the bearings able to carry heavy loads. for vibrating screens and similar applications. More recently a range of sealed Spherical roller bearings has been added to the assortment. Split Spherical roller bearings are usually based on the standard bearings but can be customized as required. WGD Bearing No. Boundary dimensions Basic load ratings(kN) Limiting speeds Mass mm Dynamic Static rpm Kg d D B rs min Cr Cor Grease Oil ≈ 24122 110 180 69 2 450 755 1,500 2,400 7.07 24122K30 110 180 69 2 450 755 1,500 2,400 6.96 24122K30W33C3 110 180 69 2 450 755 1,500 2,400 6.96 24122W33C3 110 180 69 2 450 755 1,500 2,400 7.07 24124 120 200 80 2 575 945 1,400 2,100 10.3 24124K30 120 200 80 2 575 945 1,400 2,100 10.1 24124K30W33C3 120 200 80 2 575 945 1,400 2,100 10.1 24124W33C3 120 200 80 2 575 945 1,400 2,100 10.3 24126 130 210 80 2 585 995 1,300 2,000 11 24126K30 130 210 80 2 585 995 1,300 2,000 10.8 24126K30W33C3 130 210 80 2 585 995 1,300 2,000 10.8 24126W33C3 130 210 80 2 585 995 1,300 2,000 11 24128 140 225 85 2.1 670 1,150 1,200 1,800 13.3 24128K30 140 225 85 2.1 670 1,150 1,200 1,800 13.1 24128K30W33C3 140 225 85 2.1 670 1,150 1,200 1,800 13.1 24128W33C3 140 225 85 2.1 670 1,150 1,200 1,800 13.3 24130 150 250 100 2.1 885 1,520 1,100 1,700 20.2 24130K30 150 250 100 2.1 885 1,520 1,100 1,700 20 24130K30W33C3 150 250 100 2.1 885 1,520 1,100 1,700 20 24130W33C3 150 250 100 2.1 885 1,520 1,100 1,700 20.2 24132 160 270 109 2.1 1,040 1,780 1,000 1,600 26 24132K30 160 270 109 2.1 1,040 1,780 1,000 1,600 25.6 24132K30W33C3 160 270 109 2.1 1,040 1,780 1,000 1,600 25.6 24132W33C3 160 270 109 2.1 1,040 1,780 1,000 1,600 26 24134 170 280 109 2.1 1,080 1,880 960 1,500 27.2 24134K30 170 280 109 2.1 1,080 1,880 960 1,500 26.8 24134K30W33C3 170 280 109 2.1 1,080 1,880 960 1,500 26.8 24134W33C3 170 280 109 2.1 1,080 1,880 960 1,500 27.2 24136 180 300 118 3 1,250 2,210 900 1,400 34.3 24136K30 180 300 118 3 1,250 2,210 900 1,400 33.8 24136K30W33C3 180 300 118 3 1,250 2,210 900 1,400 33.8 24136W33C3 180 300 118 3 1,250 2,210 900 1,400 34.3 24138 190 320 128 3 1,420 2,480 850 1,300 42.8 24138K30 190 320 128 3 1,420 2,480 850 1,300 42.2 24138K30W33C3 190 320 128 3 1,420 2,480 850 1,300 42.2 24138W33C3 190 320 128 3 1,420 2,480 850 1,300 42.8 24140 200 340 140 3 1,630 2,900 800 1,200 53.4 24140K30 200 340 140 3 1,630 2,900 800 1,200 52.6 24140K30W33C3 200 3, 40 140 3 1,630 2,900 800 1,200 52.6 24140W33C3 200 340 140 3 1,630 2,900 800 1,200 53.4 24144 220 370 150 4 1,880 3,400 720 1,100 67 24144K30 220 370 150 4 1,880 3,400 720 1,100 66 24144K30W33C3 220 370 150 4 1,880 3,400 720 1,100 66 24144W33C3 220 370 150 4 1,880 3,400 720 1,100 67 24148 240 400 160 4 2,110 3,800 650 1,000 82.2 24148K30 240 400 160 4 2,110 3,800 650 1,000 80.9 24148K30W33C3 240 400 160 4 2,110 3,800 650 1,000 80.9 24148W33C3 240 400 160 4 2,110 3,800 650 1,000 82.2 24152 260 440 180 4 2,510 4,600 600 920 114 24152K30 260 440 180 4 2,510 4,600 600 920 112 24152K30W33C3 260 440 180 4 2,510 4,600 600 920 112 24152W33C3 260 440 180 4 2,510 4,600 600 920 114 24156 280 460 180 5 2,730 5,200 550 850 120 24156K30 280 460 180 5 2,730 5,200 550 850 118 24156K30W33C3 280 460 180 5 2,730 5,200 550 850 118 24156W33C3 280 460 180 5 2,730 5,200 550 850 120 24160 300 500 200 5 3,300 6,400 510 780 161 24160K30 300 500 200 5 3,300 6,400 510 780 159 24160K30W33C3 300 500 200 5 3,300 6,400 510 780 159 24160W33C3 300 500 200 5 3,300 6,400 510 780 161 نیدل بیرینگ,یاتاقان,یاطاقان,بلبرینگ,یاطاقان نورد,رولبرینگ, رولبرینگ های مخروطی,رولبرینگ های مخروطی یک ردیفه,بلبرینگ های کف گرد, بلبرینگ های کف گرد یک ردیفه,بلبرینگ های کف گرد دو ردیفه, قطعات برینگ, رولبری
