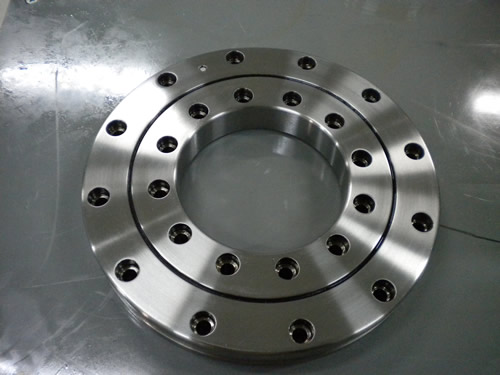

High Rigidity Crossed Roller Bearings Sealed


Model Old Model Boundary dimensions (mm) Basic load ratings (KN) Weight (KG)
d D B rsmin Cr Cor
RXU208APP CRBH208AUU 20 36 8 0.3 3.23 3.1 0.04
RXU258APP CRBH258AUU 25 41 8 0.3 3.63 3.83 0.05
RXU3010APP CRBH3010AUU 30 55 10 0.3 7.35 8.36 0.12
RXU3510APP CRBH3510AUU 35 60 10 0.3 7.64 9.12 0.13
RXU4010APP CRBH4010AUU 40 65 10 0.3 8.33 10.6 0.15
RXU4510APP CRBH4510AUU 45 70 10 0.3 8.62 11.3 0.16
RXU5013APP CRBH5013AUU 50 80 13 0.6 16.7 20.9 0.29
RXU6013APP CRBH6013AUU 60 90 13 0.6 18 24.3 0.33
RXU7013APP CRBH7013AUU 70 100 13 0.6 19.4 27.7 0.38
RXU8016APP CRBH8016AUU 80 120 16 0.6 30.1 42.1 0.74
RXU9016APP CRBH9016AUU 90 130 16 0.6 31.4 45.3 0.81
RXU10020APP CRBH10020AUU 100 150 20 0.6 33.1 50.9 1.45
RXU11020APP CRBH11020AUU 110 160 20 0.6 34 54 1.56
RXU12025APP CRBH12025AUU 120 180 25 1 66.9 100 2.62
RXU13025APP CRBH13025AUU 130 190 25 1 69.5 107 2.82
RXU14025APP CRBH14025AUU 140 200 25 1 74.8 121 2.96
RXU15025APP CRBH15025AUU 150 210 25 1 76.8 128 3.16
RXU20025APP CRBH20025AUU 200 260 25 1 84.2 157 4
RXU25025APP CRBH25025AUU 250 310 25 1.5 69.3 150 4.97
