Split bearings
You the current location > PRODUCTS > Split bearings
Split bearings

Split bearings are used at locations of restricted access and as replacement bearings. Split designs are available for cylindrical and spherical roller bearings with outer diameters up to 1750mm. Areas of application are converters, continuous casting machines, drive shafts and cold pilger machines.

If you are interesting in Split bearings,please do not hesitate to us.

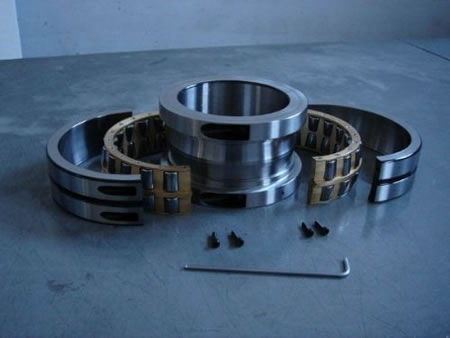

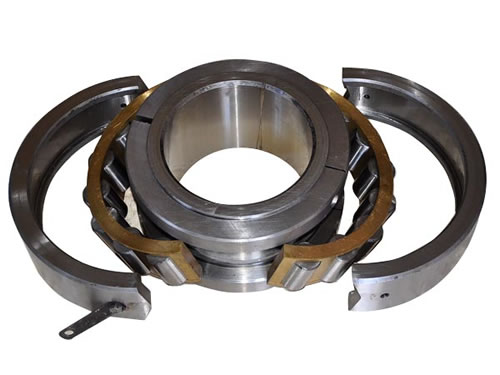

  • Split single row cylindrical roller bearings
    Model Boundary dimensions (mm) Basic load ratings (KN) Weight (KG) Structure d D B C C1 K rsmin r1smin dyc_Cr stc_Cor 802824-1 120 180 70 36 32 2 248 335 5 2 802826-1 130 200 85 42 2 2 280 385 7.5 2 802828-1 140 210 85 42

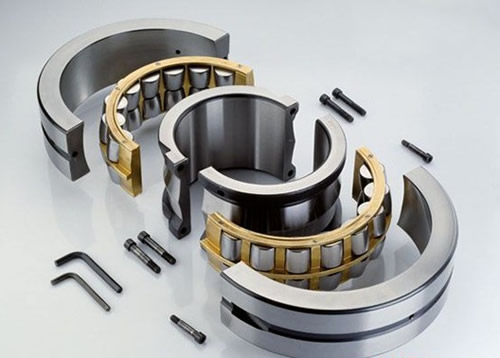

  • Split spherical roller bearings
    Model Boundary dimensions (mm) Basic load ratings (KN) Dimensions (mm) Weight (KG) d D B C rsmin r1smin dyc_Cr stc_Cor d1 D1 803824 120 200 142 80 2 2 555 900 166 169 17 803928 140 230 102 53 2 2 370 600 180 190 14 803828 140 290 1
  • Split spherical roller bearings
    SBI Split spherical roller bearings are small in size and compact in structure. They can be installed directly without disassembling the circular shafts and other component parts used in conjunction with original bearings, which will save installation time and reduce cost.SBI Split spherical roller bearings apply to all industrial sectors , SBI Spl
  • 412740,42740,SDNN650,02B110M,

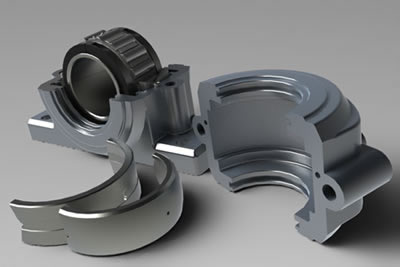

    Split bearings   FAG has developed ready-to-mount split bearing units specifically designed for use on the drive rollers of the cooling zone of continuous casting plant. The special housings are of cast steel and are water cooled. The housing top with its integral cooling chamber has a low sectional height because the standard design incorpo

Total 4 Record,1/1 Page,Page Show 20 Record 7 No.[1] Page 8
