22200 Series

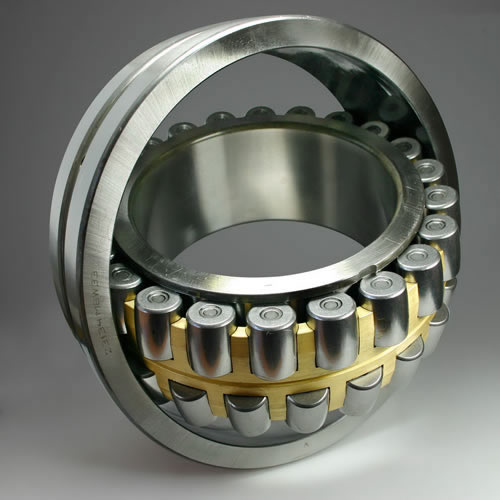

Spherical roller bearings are dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations. And with the industry’s highest load rating and production coming from a factory near you, there’s no reason to look anywhere else for Spherical roller bearings
Spherical roller bearings are inherently self-aligning and very robust. The two rows of rollers make the bearings able to carry heavy loads.
for vibrating screens and similar applications. More recently a range of sealed Spherical roller bearings has been added to the assortment. Split Spherical roller bearings are usually based on the standard bearings but can be customized as required.

1,000
WGD Bearing No.
Boundary dimensions
Basic load ratings(kN)
Limiting speeds
Mass
mm
Dynamic
Static
rpm
Kg
d
D
B
rs min
Cr
Cor
Grease
Oil
≈
22205
25
52
18
1
36.5
36
6,500
10,000
0.186
22205K
25
52
18
1
36.5
36
6,500
10,000
0.182
22205KW33C3
25
52
18
1
36.5
36
6,500
10,000
0.182
22205W33C3
25
52
18
1
36.5
36
6,500
10,000
0.186
22206
30
62
20
1
49
49
5,700
8,800
0.287
22206K
30
62
20
1
49
49
5,700
8,800
0.282
22206KW33C3
30
62
20
1
49
49
5,700
8,800
0.282
22206W33C3
30
62
20
1
49
49
5,700
8,800
0.287
22207
35
72
23
1.1
69.5
71
4,900
7,500
0.446
22207K
35
72
23
1.1
69.5
71
4,900
7,500
0.437
22207KW33C3
35
72
23
1.1
69.5
71
4,900
7,500
0.437
22207W33C3
35
72
23
1.1
69.5
71
4,900
7,500
0.446
22208
40
80
23
1.1
79
88.5
4,300
6,600
0.526
22208K
40
80
23
1.1
79
88.5
4,300
6,600
0.515
22208KW33C3
40
80
23
1.1
79
88.5
4,300
6,600
0.515
22208W33C3
40
80
23
1.1
79
88.5
4,300
6,600
0.526
22209
45
85
23
1.1
82.5
95
3,800
5,900
0.584
22209K
45
85
23
1.1
82.5
95
3,800
5,900
0.572
22209KW33C3
45
85
23
1.1
82.5
95
3,800
5,900
0.572
22209W33C3
45
85
23
1.1
82.5
95
3,800
5,900
0.584
22210
50
90
23
1.1
86
102
3,500
5,300
0.63
22210K
50
90
23
1.1
86
102
3,500
5,300
0.616
22210KW33C3
50
90
23
1.1
86
102
3,500
5,300
0.616
22210W33C3
50
90
23
1.1
86
102
3,500
5,300
0.63
22211
55
100
25
1.5
118
144
3,200
4,900
0.808
22211K
55
100
25
1.5
118
144
3,200
4,900
0.79
22211KW33C3
55
100
25
1.5
93.5
110
3,200
4,200
0.832
22211W33C3
55
100
25
1.5
118
144
3,200
4,900
0.808
22212
60
110
28
1.5
115
147
2,900
4,500
1.15
22212K
60
110
28
1.5
115
147
2,900
4,500
1.13
22212KW33C3
60
110
28
1.5
115
147
2,900
4,500
1.13
22212W33C3
60
110
28
1.5
115
147
2,900
4,500
1.15
22213
65
120
31
1.5
143
179
2,700
4,200
1.5
22213K
65
120
31
1.5
143
179
2,700
4,200
1.47
22213KW33C3
65
120
31
1.5
143
179
2,700
4,200
1.47
22213W33C3
65
120
31
1.5
143
179
2,700
4,200
1.5
22214
70
125
31
1.5
154
201
2,500
3,900
1.55
22214K
70
125
31
1.5
154
201
2,500
3,900
1.52
22214KW33C3
70
125
31
1.5
154
201
2,500
3,900
1.52
22214W33C3
70
125
31
1.5
154
201
2,500
3,900
1.55
22215
75
130
31
1.5
166
223
2,300
3,600
1.65
22215K
75
130
31
1.5
166
223
2,300
3,600
1.61
22215KW33C3
75
130
31
1.5
166
223
2,300
3,600
1.61
22215W33C3
75
130
31
1.5
166
223
2,300
3,600
1.65
22216
80
140
33
2
213
277
2,200
3,400
1.99
22216K
80
140
33
2
213
277
2,200
3,400
1.94
22216KW33C3
80
140
33
2
213
277
2,200
3,400
1.94
22216W33C3
80
140
33
2
213
277
2,200
3,400
1.99
22217
85
150
36
2
251
320
2,100
3,200
2.49
22217K
85
150
36
2
251
320
2,100
3,200
2.43
22217KW33C3
85
150
36
2
251
320
2,100
3,200
2.43
22217W33C3
85
150
36
2
251
320
2,100
3,200
2.49
22218
90
160
40
2
292
385
1,900
3,000
3.24
22218K
90
160
40
2
292
385
1,900
3,000
3.16
22218KW33C3
90
160
40
2
292
385
1,900
3,000
3.16
22218W33C3
90
160
40
2
292
385
1,900
3,000
3.24
22219
95
170
43
2.1
294
390
1,800
2,800
4.1
22219K
95
170
43
2.1
294
390
1,800
2,800
4.01
22219KW33C3
95
170
43
2.1
294
390
1,800
2,800
4.01
22219W33C3
95
170
43
2.1
294
390
1,800
2,800
4.1
22220
100
180
46
2.1
315
415
1,700
2,700
4.95
22220K
100
180
46
2.1
315
415
1,700
2,700
4.84
22220KW33C3
100
180
46
2.1
315
415
1,700
2,700
4.84
22220W33C3
100
180
46
2.1
315
415
1,700
2,700
4.95
22222
110
200
53
2.1
410
570
1,600
2,400
7.2
22222K
110
200
53
2.1
410
570
1,600
2,400
7.04
22222KW33C3
110
200
53
2.1
410
570
1,600
2,400
7.04
22222W33C3
110
200
53
2.1
410
570
1,600
2,400
7.2
22224
120
215
58
2.1
485
700
1,400
2,200
9.1
22224K
120
215
58
2.1
485
700
1,400
2,200
8.89
22224KW33C3
120
215
58
2.1
485
700
1,400
2,200
8.89
22224W33C3
120
215
58
2.1
485
700
1,400
2,200
9.1
22226KW33C3
130
230
64
3
570
790
1,300
2,000
10.9
22226W33C3
130
230
64
3
570
790
1,300
2,000
11.2
22228KW33C3
140
250
68
3
685
975
1,200
1,900
13.7
22228W33C3
140
250
68
3
685
975
1,200
1,900
14
22230KW33C3
150
270
73
3
775
1,160
1,100
1,700
17.7
22230W33C3
150
270
73
3
775
1,160
1,100
1,700
18.1
22232KW33C3
160
290
80
3
870
1,290
1,000
1,600
22.2
22232W33C3
160
290
80
3
870
1,290
1,000
1,600
22.7
22234KW33C3
170
310
86
4
1,000
1,520
980
1,500
27.3
22234W33C3
170
310
86
4
1,520
980
1,500
28
22236KW33C3
180
320
86
4
1,040
1,610
920
1,400
28.6
22236W33C3
180
320
86
4
1,040
1,610
920
1,400
29.3
22238KW33C3
190
340
92
4
1,160
1,810
860
1,300
35.8
22238W33C3
190
340
92
4
1,160
1,810
860
1,300
36.6
22240KW33C3
200
360
98
4
1,310
2,010
820
1,300
43
22240W33C3
200
360
98
4
1,310
2,010
820
1,300
44
22244KW33C3
220
400
108
4
1,580
2,460
730
1,100
59.1
22244W33C3
220
400
108
4
1,580
 2,460
730
1,100
60.4
22248KW33C3
240
440
120
4
1,940
3,100
660
1,000
80
22248W33C3
240
440
120
4
1,940
3,100
660
1,000
81.7
22252KW33C3
260
480
130
5
2,230
3,600
610
930
104
22252W33C3
260
480
130
5
2,230
3,600
610
930
106
22256KW33C3
280
500
130
5
2,310
3,800
560
860
110
22256W33C3
280
500
130
5
2,310
3,800
560
860
112
22260KW33C3
300
540
140
5
2,670
4,350
510
790
138
22260W33C3
300
540
140
5
2,670
4,350
510
790
141
