Cross Roller bearings
Cross Roller bearings

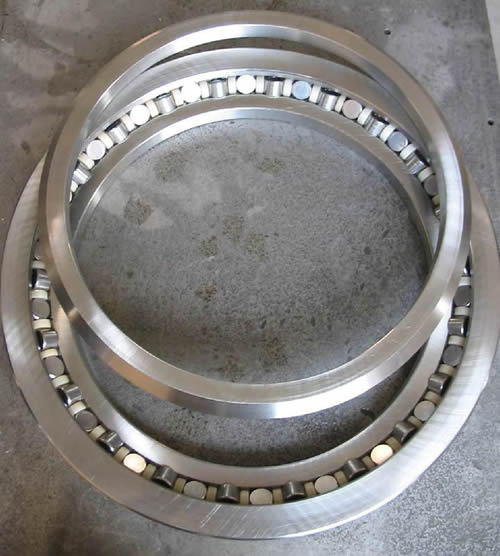

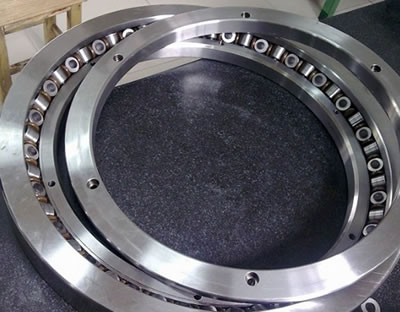

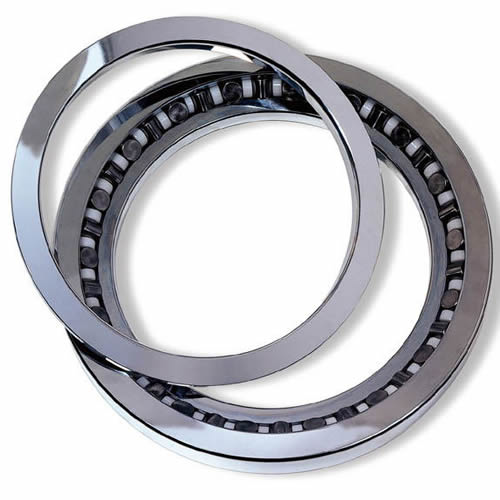

Crossed roller bearings are designed to offer the highest levels of rotational accuracy and rigidity while conserving space and saving material costs. The bearing features two sets of races and rollers brought together at right angles with alternate rollers facing in opposite directions. This allows two half-rows of rollers to fit into the space of one. The steep-angle, tapered geometry results in a total effective bearing spread much greater than the width of the bearing itself.
Able to withstand high overturning moments, the crossed roller bearing is ideal for the table bearing of machine tools, including vertical boring and grinding machines. It is uniquely suited to many other pivot and pedestal applications where space is limited or the lowest possible center of gravity of a rotating mass is required.
-
Model Old Model Boundary dimensions (mm) Basic load ratings (KN) Weight (KG) d D B rsmin Cr Cor RXU3010VPP CRB3010UU 30 55 10 0.3 7.35 8.36 0.12 RXU4010VPP CRB4010UU 40 65 10 0.3 8.33 10.6 0.15 RXU5013VPP CRB5013UU 50 80 13 0.6 16.7 20.9 0.29
-
Model Old Model Boundary dimensions (mm) Basic load ratings (KN) Weight (KG) d D B rsmin Cr Cor RXU3010 V CRB3010 30 55 10 0.3 7.35 8.36 0.12 RXU4010 V CRB4010 40 65 10 0.3 8.33 10.6 0.15 RXU5013 V CRB5013 50 80 13 0.6 16.7 20.9
-
Model Old Model Boundary dimensions (mm) Basic load ratings (KN) Weight (KG) d D B rsmin Cr Cor RXU208APP CRBH208AUU 20 36 8 0.3 3.23 3.1 0.04 RXU258APP CRBH258AUU 25 41 8 0.3 3.63 3.83 0.05 RXU3010APP CRBH3010AUU 30 55 10 0.3 7.35 8.36 0.12
-
Model Old Model Boundary dimensions (mm) Basic load ratings (KN) Weight (KG) d D B rsmin Cr Cor RXU208A CRBH208A 20 36 8 0.3 3.23 3.1 0.04 RXU258A CRBH258A 25 41 8 0.3 3.63 3.83 0.05 RXU3010A CRBH3010A 30 55 10 0.3 7.35 8.36 0.12 RXU3510A
-
Specifications cross rail cross roller bearing THK RB7013 70*100*13mm 1. higher quality 2. competitive price 3. delivery in time 4. OEM cross rail cross roller bearing THK RB7013 70*100*13mm Model No. Main dimensions Basic load rating (Radial) Inner diameter Outer diameter Width Dynamic rating St
