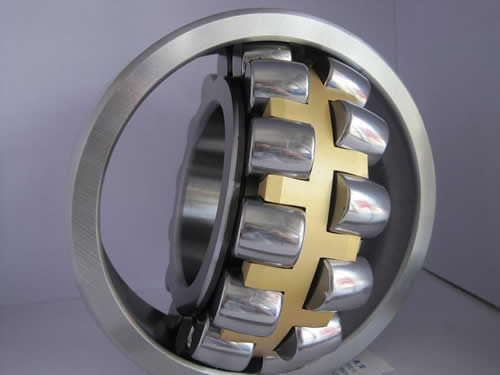

23100 Series


Spherical roller bearings are dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations. And with the industry’s highest load rating and production coming from a factory near you, there’s no reason to look anywhere else for Spherical roller bearings
Spherical roller bearings are inherently self-aligning and very robust. The two rows of rollers make the bearings able to carry heavy loads.
for vibrating screens and similar applications. More recently a range of sealed Spherical roller bearings has been added to the assortment. Split Spherical roller bearings are usually based on the standard bearings but can be customized as required.
WGD Bearing No.
Boundary dimensions
Basic load ratings(kN)
Limiting speeds
Mass
mm
Dynamic
Static
rpm
Kg
d
D
B
rs min
Cr
Cor
Grease
Oil
23120
100
165
52
2
310
470
1,700
2,600
4.3
23120K
100
165
52
2
310
470
1,700
2,600
4.16
23120KW33C3
100
165
52
2
310
470
1,700
2,600
4.16
23120W33C3
100
165
52
2
310
470
1,700
2,600
4.3
23122
110
180
56
2
370
580
1,500
2,400
5.4
23122K
110
180
56
2
370
580
1,500
2,400
5.22
23122KW33C3
110
180
56
2
370
580
1,500
2,400
5.22
23122W33C3
110
180
56
2
370
580
1,500
2,400
5.4
23124
120
200
62
2
455
705
1,400
2,100
7.7
23124K
120
200
62
2
455
705
1,400
2,100
7.46
23124KW33C3
120
200
62
2
455
705
1,400
2,100
7.46
23124W33C3
120
200
62
2
455
705
1,400
2,100
7.7
23126
130
210
64
2
495
795
1,300
2,000
8.47
23126K
130
210
64
2
495
795
1,300
2,000
8.2
23126KW33C3
130
210
64
2
495
795
1,300
2,000
8.2
23126W33C3
130
210
64
2
495
795
1,300
2,000
8.47
23128
140
225
68
2.1
540
895
1,200
1,800
10.2
23128K
140
225
68
2.1
540
895
1,200
1,800
9.86
23128KW33C3
140
225
68
2.1
540
895
1,200
1,800
9.86
23128W33C3
140
225
68
2.1
540
895
1,200
1,800
10.2
23130
150
250
80
2.1
730
1,190
1,100
1,700
15.6
23130K
150
250
80
2.1
730
1,190
1,100
1,700
15.1
23130KW33C3
150
250
80
2.1
730
1,190
1,100
1,700
15.1
23130W33C3
150
250
80
2.1
730
1,190
1,100
1,700
15.6
23132
160
270
86
2.1
840
1,370
1,000
1,600
19.8
23132K
160
270
86
2.1
840
1,370
1,000
1,600
19.2
23132KW33C3
160
270
86
2.1
840
1,370
1,000
1,600
19.2
23132W33C3
160
270
86
2.1
840
1,370
1,000
1,600
19.8
23134
170
280
88
2.1
885
1,490
960
1,500
21.5
23134K
170
280
88
2.1
885
1,490
960
1,500
20.8
23134KW33C3
170
280
88
2.1
885
1,490
960
1,500
20.8
23134W33C3
170
280
88
2.1
885
1,490
960
1,500
21.5
23136
180
300
96
3
1,030
1,730
900
1,400
25.1
23136K
180
300
96
3
1,030
1,730
900
1,400
24.2
23136KW33C3
180
300
96
3
1,030
1,730
900
1,400
24.2
23136W33C3
180
300
96
3
1,030
1,730
900
1,400
25.1
23138
190
320
104
3
1,190
2,020
850
1,300
35.3
23138K
190
320
104
3
1,190
2,020
850
1,300
34.2
23138KW33C3
190
320
104
3
1,190
2,020
850
1,300
34.2
23138W33C3
190
320
104
3
1,190
2,020
850
1,300
35.3
23140
200
340
112
3
1,350
2,270
800
1,200
43.3
23140K
200
340
112
3
1,350
2,270
800
1,200
42
23140KW33C3
200
340
112
3
1,350
2,270
800
1,200
42
23140W33C3
200
340
112
3
1,350
2,270
800
1,200
43.3
23144
220
370
120
4
1,540
2,670
720
1,100
53.3
23144K
220
370
120
4
1,540
2,670
720
1,100
51.6
23144KW33C3
220
370
120
4
1,540
2,670
720
1,100
51.6
23144W33C3
220
370
120
4
1,540
2,670
720
1,100
53.3
23148
240
400
128
4
1,730
3,050
650
1,000
65.8
23148K
240
400
128
4
1,730
3,050
650
1,000
63.8
23148KW33C3
240
400
128
4
1,730
3,050
650
1,000
63.8
23148W33C3
240
400
128
4
1,730
3,050
650
1,000
65.8
23152
260
440
144
4
2,140
3,850
600
920
91.4
23152K
260
440
144
4
2,140
3,850
600
920
88.6
23152KW33C3
260
440
144
4
2,140
3,850
600
920
88.6
23152W33C3
260
440
144
4
2,140
3,850
600
920
91.4
23156
280
460
146
5
2,300
4,250
550
850
97.7
23156K
280
460
146
5
2,300
4,250
550
850
94.6
23156KW33C3
280
460
146
5
2,300
4,250
550
850
94.6
23156W33C3
280
460
146
5
2,300
4,250
550
850
97.7
23160
300
500
160
5
2,750
5,000
510
780
131
23160K
300
500
160
5
2,750
5,000
510
780
127
23160KW33C3
300
500
160
5
2,750
5,000
510
780
127
23160W33C3
300
500
160
5
2,750
5,000
510
780
131
23120/3053720KMB/CAK/CCK/W33 JNS 23138/3053738KMB/CAK/CCK/W33 ASAHI
23122/3053722KMB/CAK/CCK/W33 UNITEC 23140/3053740KMB/CAK/CCK/W33 KSM
23124/3053724KMB/CAK/CCK/W33 JAF 23144/3053744KMB/CAK/CCK/W33 KBC
23126/3053726KMB/CAK/CCK/W33 BOWER 23148/3053748KMB/CAK/CCK/W33 NBU
23128/3053728KMB/CAK/CCK/W33 EASE 23152/3053752KMB/CAK/CCK/W33 SGR
23130/3053730KMB/CAK/CCK/W33 SNR 23156/3053756KMB/CAK/CCK/W33 GWB
23132/3053732KMB/CAK/CCK/W33 IKO 23160/3053760KMB/CAK/CCK/W33 CMS
23134/3053730KMB/CAK/CCK/W33 UBC 23164/3053764KM
