22300 Series

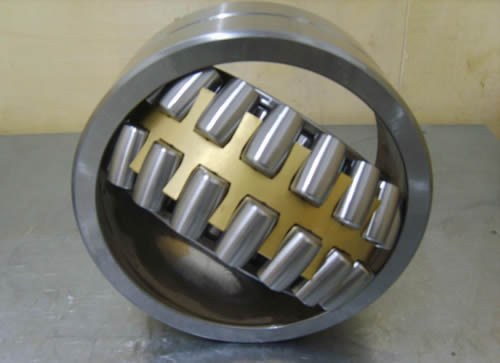

Spherical roller bearings are dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations. And with the industry’s highest load rating and production coming from a factory near you, there’s no reason to look anywhere else for Spherical roller bearings
Spherical roller bearings are inherently self-aligning and very robust. The two rows of rollers make the bearings able to carry heavy loads.
for vibrating screens and similar applications. More recently a range of sealed Spherical roller bearings has been added to the assortment. Split Spherical roller bearings are usually based on the standard bearings but can be customized as required.
510
WGD Bearing No.
Boundary dimensions
Basic load ratings(kN)
Limiting speeds
Mass
mm
Dynamic
Static
rpm
Kg
d
D
B
rs min
Cr
Cor
Grease
Oil
≈
22308
40
90
33
1.5
121
128
3,800
5,900
0.974
22308K
40
90
33
1.5
121
128
3,800
5,900
0.951
22308KW33C3
40
90
33
1.5
121
128
3,800
5,900
0.951
22308W33C3
40
90
33
1.5
121
128
3,800
5,900
0.974
22309
45
100
36
1.5
148
167
3,400
5,300
1.33
22309K
45
100
36
1.5
148
167
3,400
5,300
1.3
22309KW33C3
45
100
36
1.5
148
167
3,400
5,300
1.3
22309W33C3
45
100
36
1.5
148
167
3,400
5,300
1.33
22310
50
110
40
2
186
212
3,100
4,800
1.79
22310K
50
110
40
2
186
212
3,100
4,800
1.75
22310KW33C3
50
110
40
2
186
212
3,100
4,800
1.75
22310W33C3
50
110
40
2
186
212
3,100
4,800
1.79
22311
55
120
43
2
204
234
2,800
4,400
2.3
22311K
55
120
43
2
204
234
2,800
4,400
2.25
22311KW33C3
55
120
43
2
204
234
2,800
4,400
2.25
22311W33C3
55
120
43
2
204
234
2,800
4,400
2.3
22312
60
130
46
2.1
238
273
2,600
4,000
2.9
22312K
60
130
46
2.1
238
273
2,600
4,000
2.83
22312KW33C3
60
130
46
2.1
238
273
2,600
4,000
2.83
22312W33C3
60
130
46
2.1
238
273
2,600
4,000
2.9
22313
65
140
48
2.1
265
320
2,400
3,700
3.45
22313K
65
140
48
2.1
265
320
2,400
3,700
3.37
22313KW33C3
65
140
48
2.1
265
320
2,400
3,700
3.37
22313W33C3
65
140
48
2.1
265
320
2,400
3,700
3.45
22314
70
150
51
2.1
325
380
2,300
3,500
4.22
22314K
70
150
51
2.1
325
380
2,300
3,500
4.12
22314KW33C3
70
150
51
2.1
325
380
2,300
3,500
4.12
22314W33C3
70
150
51
2.1
325
380
2,300
3,500
4.22
22315
75
160
55
2.1
330
410
2,100
3,200
5.25
22315K
75
160
55
2.1
330
410
2,100
3,200
5.13
22315KW33C3
75
160
55
2.1
330
410
2,100
3,200
5.13
22315W33C3
75
160
55
2.1
330
410
2,100
3,200
5.25
22316
80
170
58
2.1
385
470
2,000
3,000
6.05
22316K
80
170
58
2.1
385
470
2,000
3,000
5.91
22316KW33C3
80
170
58
2.1
385
470
2,000
3,000
5.91
22316W33C3
80
170
58
2.1
385
470
2,000
3,000
6.05
22317
85
180
60
3
415
510
1,900
2,900
7.1
22317K
85
180
60
3
415
510
1,900
2,900
6.94
22317KW33C3
85
180
60
3
415
1,900
2,900
6.94
22317W33C3
85
180
60
3
415
510
1,900
2,900
7.1
22318
90
190
64
3
480
590
1,800
2,700
8.35
22318K
90
190
64
3
480
590
1,800
2,700
8.16
22318KW33C3
90
190
64
3
480
590
1,800
2,700
8.16
22318W33C3
90
190
64
3
480
590
1,800
2,700
8.35
22319
95
200
67
3
500
615
1,600
2,500
9.76
22319K
95
200
67
3
500
615
1,600
2,500
9.54
22319KW33C3
95
200
67
3
500
615
1,600
2,500
9.54
22319W33C3
95
200
67
3
500
615
1,600
2,500
9.76
22320
100
215
73
3
605
755
1,600
2,400
12.4
22320K
100
215
73
3
605
755
1,600
2,400
12.1
22320KW33C3
100
215
73
3
605
755
1,600
2,400
12.1
22320W33C3
100
215
73
3
605
755
1,600
2,400
12.4
22322
110
240
80
3
745
930
1,400
2,200
17.1
22322K
110
240
80
3
745
930
1,400
2,200
16.7
22322KW33C3
110
240
80
3
745
930
1,400
2,200
16.7
22322W33C3
110
240
80
3
745
930
1,400
2,200
17.1
22324
120
260
86
3
880
1,120
1,300
2,000
21.5
22324K
120
260
86
3
880
1,120
1,300
2,000
21
22324KW33C3
120
260
86
3
880
1,120
1,300
2,000
21
22324W33C3
120
260
86
3
880
1,120
1,300
2,000
21.5
22326
130
280
93
4
1,000
1,290
1,200
1,800
26.8
22326K
130
280
93
4
1,000
1,290
1,200
1,800
26.2
22326KW33C3
130
280
93
4
1,000
1,290
1,200
1,800
26.2
22326W33C3
130
280
93
4
1,000
1,290
1,200
1,800
26.8
22328
140
300
102
4
1,130
1,460
1,100
1,700
33.8
22328K
140
300
102
4
1,130
1,460
1,100
1,700
33
22328KW33C3
140
300
102
4
1,130
1,460
1,100
1,700
33
22328W33C3
140
300
102
4
1,130
1,460
1,100
1,700
33.8
22330
150
320
108
4
1,270
1,750
1,000
1,600
42.7
22330K
150
320
108
4
1,270
1,750
1,000
1,600
41.8
22330KW33C3
150
320
108
4
1,270
1,750
1,000
1,600
41.8
22330W33C3
150
320
108
4
1,270
1,750
1,000
1,600
42.7
22332
160
340
114
4
1,410
1,990
940
1,500
50.8
22332K
160
340
114
4
1,410
1,990
940
1,500
49.7
22332KW33C3
160
340
114
4
1,410
1,990
940
1,500
49.7
22332W33C3
160
340
114
4
1,410
1,990
940
1,500
50.8
22334
170
360
120
4
1,540
2,180
880
1,400
59.8
22334K
170
360
120
4
1,540
2,180
880
1,400
58.5
22334KW33C3
170
360
120
4
1,540
2,180
880
1,400
58.5
22334W33C3
170
360
120
4
1,540
2,180
880
1,400
59.8
22336
180
380
126
4
1,740
2,560
830
1,300
70
22336K
180
380
126
4
1,740
2,560
830
1,300
68.5
22336KW33C3
180
380
126
4
1,740
2,560
830
1,300
68.5
22336W33C3
180
380
126
4
1,740
2,560
830
1,300
70
22338
190
400
132
5
1,870
2,790
780
1,200
81
22338K
190
400
132
5
1,870
2,790
780
1,200
79.3
22338KW33C3
190
400
132
5
1,870
2,790
780
1,200
79.3
22338W33C3
190,
