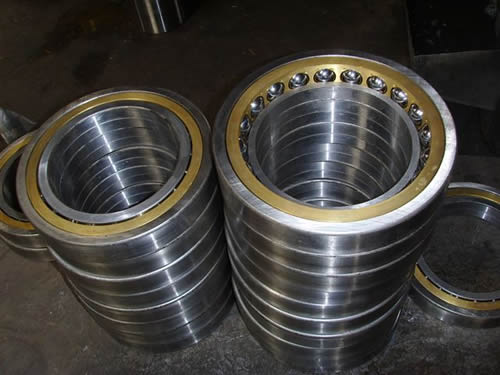

7400C Series

Angular contact ball bearings are able to support radial load and axial load. As single row Angular contact ball bearings can only support axial load in single direction, matched bearing mounting is often adopted to them as matched parts of bearings, preload for them is more convenient.
　　Retainers are made of brass, synthetic resins or others subject to individual bearing features and application conditions.

WGD Bearing No.	Boundary dimensions			Basic load ratings(kN)		Limiting speed		Mass
	mm			Dynamic	Static	rpm		kg
	d	D	B	Cr	Cor	Grease	Oil	≈
7406C	30	90	23	57.5	33.8	6,500	8,500	0.96
7407C	35	100	25	66.8	41.2	5,500	8,000	1.14
7408C	40	110	27	80.2	53.3	5,200	7,000	1.4
7409C	45	120	29	93.1	60.8	5,000	6,500	1.8
7410C	50	130	31	119.3	81	4,500	6,000	2.25
7411C	55	140	33	125.3	87	4,200	5,600	2.75
7412C	60	150	35	136.3	98.2	3,800	5,200	3.4
7413C	65	160	37	147.4	110.2	3,400	4,800	4.2
7414C	70	180	42	160.4	126.6	3,200	4,500	5.8
7415C	75	190	45	171.4	138.9	3,000	4,200	7
7416C	80	200	48	183.2	152.9	2,800	4,000	8.4
7417C	85	210	52	195.1	167.6	2,600	3,700	9.6
7418C	90	225	54	208	184.2	2,400	3,400	11.2

7406ACM/BM	BARCO	7411ACM/BM	UNITEC	7416ACM/BM	IKO
7407ACM/BM	PSL	7412ACM/BM	JAF	7417ACM/BM	UBC
7408ACM/BM	MTK	7413ACM/BM	BOWER	7418ACM/BM	TWB
7409ACM/BM	RBF	7414ACM/BM	EASE
7410ACM/BM	JNS	7415ACM/BM	SNR
