7300C Series

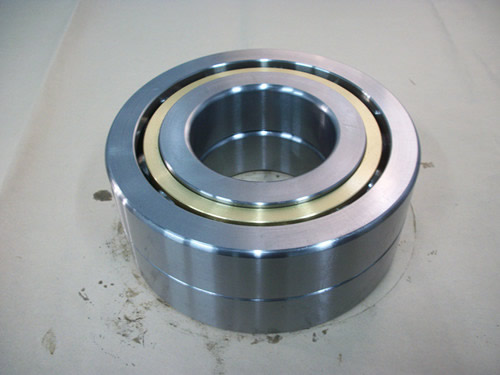

Angular contact ball bearings are able to support radial load and axial load. As single row Angular contact ball bearings can only support axial load in single direction, matched bearing mounting is often adopted to them as matched parts of bearings, preload for them is more convenient.
　　Retainers are made of brass, synthetic resins or others subject to individual bearing features and application conditions.

WGD Bearing No.	Boundary dimensions			Basic load ratings(kN)		Limiting speed		Mass
	mm			Dynamic	Static	rpm		kg
	d	D	B	Cr	Cor	Grease	Oil	≈
7300C	10	35	11	9.8	4.6	18,000	26,000	0.053
7301C	12	37	12	11.8	5.6	17,000	24,000	0.06
7302C	15	42	13	13.2	6.7	15,000	21,000	0.084
7303C	17	47	14	15.7	8.2	13,000	19,000	0.16
7304C	20	52	15	18.4	9.8	12,000	17,000	0.15
7305C	25	62	17	27.8	15.9	9,500	14,000	0.23
7306C	30	72	19	33.2	21.2	8,500	12,000	0.35
7307C	35	80	21	40.3	25.8	7,500	10,000	0.47
7308C	40	90	23	49.3	32.3	6,700	9,000	0.66
7309C	45	100	25	63.1	42.9	6,000	8,000	0.86
7310C	50	110	27	74.9	50.9	5,600	7,500	1.08
7311C	55	120	29	86.4	59.5	5,000	6,700	1.42
7312C	60	130	31	98.6	68.5	4,800	6,300	1.71
7313C	65	140	33	113.1	79.6	4,300	5,600	2.23
7314C	70	150	35	126	91.6	4,000	5,300	2.67
7315C	75	160	37	140.7	103.9	3,800	5,000	3.1
7316C	80	170	39	156.1	112.2	3,600	4,800	3.6
7317C	85	180	41	160.7	130.5	3,400	4,500	4.38
7318C	90	190	43	184.9	159.9	3,200	4,300	5.6
7319C	95	200	45	201.1	179.8	3,200	4,200	6.6
7320C	100	215	47	222.1	206.7	3,000	4,000	7.58
7321C	105	225	49	235.8	225.6	2,800	3,800	8.85
7322C	110	240	50	263.2	261.9	2,600	3,600	10.5

7300ACM/BM	SAMICK	7304ACM/BM	FBJ	7308ACM/BM	BNL	7312ACM/BM	MRC	7316ACM/BM	NDH
7301ACM/BM	TYSON	7305ACM/BM	KHK	7309ACM/BM	HPZ	7313ACM/BM	MPB	7317ACM/BM	CIS
7302ACM/BM	ISC	7306ACM/BM	IBC	7310ACM/BM	VPZ	7314ACM/BM	FYH
7303ACM/BM	MCGILL	7307ACM/BM	SVZ	7311ACM/BM	SHS	7315ACM/BM	BDI
