Thrust ball bearings, characteristics and uses:

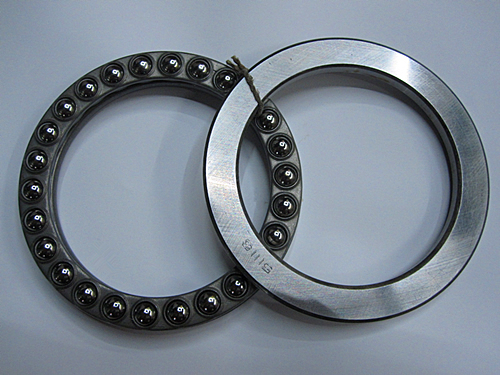

Plane thrust ball bearing one-way and two-way one-way plane thrust ball bearings in a raceway ring between the installation of steel ball, the contact angle is generally 90 °, only to withstand axial load, not suitable for high-speed rotation. These bearings can be separated into three, commonly known as the bearing for the three clips, two pads are for the arc-shaped deep groove ball rolling.
Two-way thrust ball bearings mounted to the shaft in the middle of the circle and two outer, plus have the ball between the middle ring and outer ring, respectively, can accommodate axial loads.
Plane thrust ball bearing outer ring plane seat plane-seat, aligning type and with aligning the gasket seat type. One-way, two-way thrust ball bearing cage commonly used steel stamping molding.
Other special type of self-aligning roller bearings such as thrust, two-way thrust angular contact ball bearings, thrust needle roller bearings, thrust cylindrical roller bearings.
l three-piece: 511XX, 512XX, 513XX, 514XX
Five type: 522XX, 523XX, 524XX
Three thrust-aligning roller: 294XX, 293XX, 292XX
