51400 Series

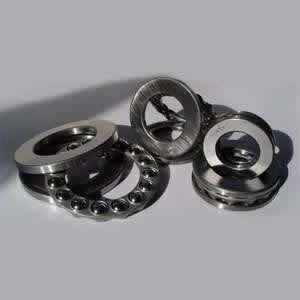

Thrust ball bearing is separable , which can only carry axial load . The single direction Thrust ball bearing of them can only carry axial load in one direction , while the double an carry alternating axial load in either direction . Before using Thrust ball bearing have to be preloaded. The Thrust ball bearing are used in lathe centers , automobile clutches, reducers and so on . The double direction angular contact Thrust ball bearing are suitable for machine tool spindles , while the single direction angular contact Thrust ball bearing are used to support ball screws .
WGD Bearing No. |
Boundary dimensions |
Basic load ratings(kN) |
Limiting speed |
Mass | ||||
mm |
Dynamic |
Static |
rpm |
Kg | ||||
d |
D |
T |
Cr |
Cor |
Grease |
Oil |
≈ | |
51405 |
25 |
60 |
24 |
55.5 |
89.2 |
2,200 |
3,400 |
0.31 |
51406 |
30 |
70 |
28 |
72.5 |
125 |
1,900 |
3,000 |
0.51 |
51407 |
35 |
80 |
32 |
86.8 |
155 |
1,700 |
2,600 |
0.76 |
51408 |
40 |
90 |
36 |
112 |
205 |
1,500 |
2,200 |
1.06 |
51409 |
45 |
100 |
39 |
140 |
262 |
1,400 |
2,000 |
1.41 |
51410 |
50 |
110 |
43 |
160 |
302 |
1,300 |
1,900 |
1.86 |
51411 |
55 |
120 |
48 |
182 |
355 |
1,100 |
1,700 |
2.51 |
51412 |
60 |
130 |
51 |
200 |
395 |
1,000 |
1,600 |
3.08 |
51413 |
65 |
140 |
56 |
215 |
448 |
900 |
1,400 |
3.91 |
51414 |
70 |
150 |
60 |
255 |
560 |
850 |
1,300 |
4.85 |
51415 |
75 |
160 |
65 |
268 |
615 |
800 |
1,200 |
6.08 |
51416 |
80 |
170 |
68 |
292 |
692 |
750 |
1,100 |
7.12 |
51417 |
85 |
180 |
72 |
318 |
782 |
700 |
1,000 |
8.28 |
51405/8405 | EASE | 51424/8424 | FAFNIR | 52217/38217 | EZO | 52313/38313 | HIC | 52409/38409 | FYH |
51406/8406 | SNR | 51426/8426 | TSUBAKI | 52218/38218 | DPI | 52314/38314 | NMB | 52410/38410 | ISC |
51407/8407 | IKO | 51428/8428 | GPZ | 52219/38219 | KG | 52315/38315 | TKO | 52411/38411 | MCGILL |
51408/8408 | UBC | 51430/8430 | DYZE | 52220/38220 | RHP | 52316/38316 | SPZ | 52412/38412 | FBJ |
51409/8409 | TWB | 52204/38204 | UKB | 52222/38222 | NHBB | 52317/38317 | APZ | 52413/38413 | KHK |
51410/8410 | ASAHI | 52205/38205 | KOYO | 52224/38224 | SLF | 52318/38318 | SHAR | 52414/38414 | SAMICK |
51411/8411 | KSM | 52206/38206 | FAG | 52226/38226 | URB | 52319/38319 | HARP | 52415/38415 | SVZ |
51412/8412 | KBC | 52207/38207 | NSK | 52228/38228 | FLT | 52320 |
