33000 Series

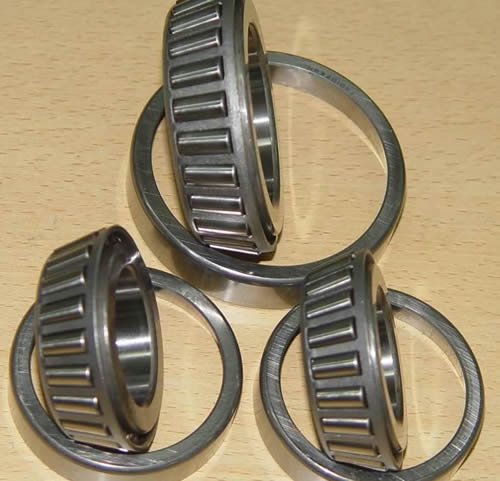

Tapered roller bearings are separable and have the following components: outer ring, inner ring, and roller assembly (containing the rollers and a cage). The non-separable inner ring and roller assembly is called the cone, and the outer ring is called the cup. Internal clearance is established during mounting by the axial position of the cone relative to the cup.

Metric tapered roller bearings follow the designation system defined by ISO 355.

In many applications tapered roller bearings are used in back-to-back pairs so that axial forces can be supported equally in either direction.

Pairs of tapered roller bearings are used in car and vehicle wheel bearings where they must cope simultaneously with large vertical (radial) and horizontal (axial) forces. Applications for tapered roller bearings are commonly used for moderate speed, heavy duty applications where durability is required. Common real world applications are in agriculture, construction and mining equipment, axle systems, gear box, engine motors and reducers.

WGD Bearing No.	Boundary dimensions							Basic load rating(kN)		Limiting speed		Mass
	mm							Dynamic	Static	rpm		Kg
	d	D	T	B	C	R_min	r_min	Cr	Cor	Grease	Oil	≈
33005	25	47	17	17	14	0.6	0.6	27.5	37	8000	10700	0.131
33006	30	55	20	20	16	1	1	39.5	59.5	6700	9100	0.208
33007	35	62	21	21	17	1	1	51.3	68	6200	8200	0.267
33008	40	68	22	22	18	1	1	60.4	84.6	5500	7400	0.322
33009	45	75	24	24	19	1	1	69.6	101	5000	6700	0.414
33010	50	80	24	24	19	1	1	73	110	4600	6100	0.452
33011	55	90	27	27	21	1.5	1.5	96.5	145	4100	5400	0.672
33012	60	95	27	27	21	1.5	1.5	101	162	3900	5200	0.713
33013	65	100	27	27	21	1.5	1.5	103	169	3600	4800	0.758
33014	70	110	31	31	25.5	1.5	1.5	134	208	3300	4400	1.11
33015	75	115	31	31	25.5	1.5	1.5	141	225	3200	4200	1.18
33019	95	145	39	39	32.5	2	1.5	226	382	2500	3300	2.3
33022	110	170	47	47	37	2.5	2	287	502	2100	2800	3.775

33005/3007105	FYH	33015/3007115	SHS	33108/3007708	GPZ	32928/2007928	SHAR
33006/3007106	ISC	33016/3007116	MRC	33109/3007709	DYZE	32930/2007930	HARP
33007/3007107	MCGILL	33017/3007117	MPB	33110/3007710	UKB	33028/3007128	RBF
33008/3007108	FBJ	33018/3007118	TYSON	33111/3007711	KOYO	32915/2007915	ZKL
33009/3007109	KHK	33019/3007119	BDI	33112/3007712	FAG	32916/2007916	ZVL
33010/3007110	SAMICK	33020/3007120	NDH	33113/3007713	NSK	32917/2007917	SBP
33011/3007111	SVZ	33021/3007121	CIS	33114/3007714	NTN	33128/3007728	KG
33012/3007112	BNL	33022/3007122	BARCO	33115/3007715	NACHI	33130/3007730	RHP
33013/3007113	HPZ	33024/3007124	PSL	33116/3007716	TIMKEN	32907/2007907	NHBB
33014/3007114	VPZ	33026/3007126	MTK	33117/3007717	INA	32924/2007924	SPZ
33118/3007718	SKF	32908/2007908	SLF	32918/2007918	BRB	32926/2007926	APZ
33119/3007719	SNFA	32909/2007909	URB	32919/2007919	NIS	32913/2007913	HRB
33120/3007720	GMN	32910/2007910	FLT	32920/2007920	HIC	32914/2007914	NKE
33121/3007721	THK	32911/2007911	ZWZ	32921/2007921	NMB	33124/3007724	EZO
33122/3007722	KBS	32912/2007912	LYC	32922/2007922	TKO	33126/3007726	DPI
