MF Series

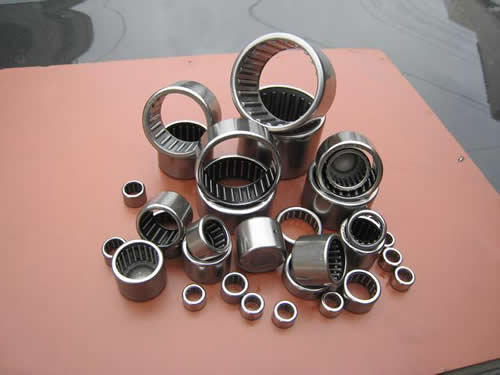

needle roller bearing is a bearing which uses small cylindrical rollers. They are used to reduce friction of a rotating surface.

needle roller bearing have a large surface area that is in contact with the bearing outer surfaces compared to ball bearings. Additionally there is less added clearance (difference between the diameter of the shaft and the diameter of the bearing) so they are much more compact. The typical structure consists of an a needle cage which orients and contains the needle rollers, the needle rollers themselves, and an outer race(sometimes housing itself).

Radial needle roller bearing are cylindrical and use rollers parallel to the axis of the shaft. Thrus needle roller bearing are flat and use a radial pattern of needles.

Full complement needle roller bearing have solid inner and outer rings and rib-guided cylindrical rollers. Since these bearings have the largest possible number of rolling elements, they have extremely high radial load carrying capacity and are suitable for particularly compact designs. [1]

needle roller bearing are heavily used in engine components such as rocker arm pivots, pumps, compressors, and transmissions. The drive shaft of a rear-wheel drive vehicle typically has at least 8 needle roller bearings(4 in each U joint) and often more if it is particularly long, or operates on steep slopes.

Additional clarification of Needle Roller: According to "Marks' Standard Handbook for Mechanical Engineers", aneedle roller bearing is a roller bearing with rollers whose length are at least four times their diameter.

WGD Bearing No.
Boundary dimensions(mm)
Basic load ratings(N)
Limiting speeds(rpm)
Mass(g)
Fw
D
C
Cr
Cor
Oil
                      MF6.35X11.11X11.13
6.35
11.11
11.13
3500
6050
12000
4.1
                      MF3020
30
37
20
26800
62500
4300
48
