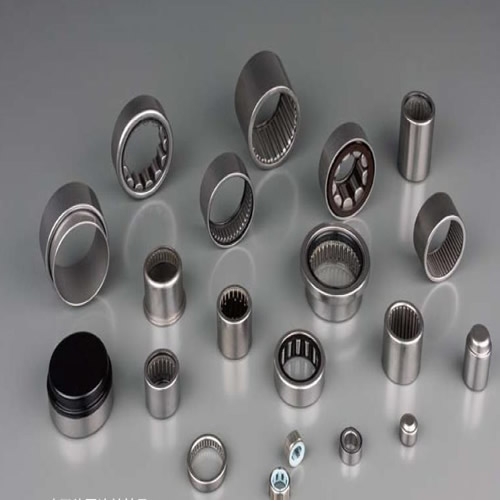

F Series


needle roller bearing is a bearing which uses small cylindrical rollers. They are used to reduce friction of a rotating surface.

needle roller bearing have a large surface area that is in contact with the bearing outer surfaces compared to ball bearings. Additionally there is less added clearance (difference between the diameter of the shaft and the diameter of the bearing) so they are much more compact. The typical structure consists of an a needle cage which orients and contains the needle rollers, the needle rollers themselves, and an outer race(sometimes housing itself).

Radial needle roller bearing are cylindrical and use rollers parallel to the axis of the shaft. Thrus needle roller bearing are flat and use a radial pattern of needles.

Full complement needle roller bearing have solid inner and outer rings and rib-guided cylindrical rollers. Since these bearings have the largest possible number of rolling elements, they have extremely high radial load carrying capacity and are suitable for particularly compact designs. [1]

needle roller bearing are heavily used in engine components such as rocker arm pivots, pumps, compressors, and transmissions. The drive shaft of a rear-wheel drive vehicle typically has at least 8 needle roller bearings(4 in each U joint) and often more if it is particularly long, or operates on steep slopes.

Additional clarification of Needle Roller: According to "Marks' Standard Handbook for Mechanical Engineers", aneedle roller bearing is a roller bearing with rollers whose length are at least four times their diameter.

WGD Bearing No.
Boundary dimensions(mm)
Basic load ratings(N)
Limiting speeds(rpm)
Mass(g)
Fw
D
C
Cr
Cor
Oil
F0608
6
10
8
3080
5800
12000
2.5
F6.35X11.11X11.13
6.35
11.11
11.13
3500
6050
12000
3.2
F0810
8
12
10
4050
7150
13000
3.7
F0910
9
13
10
4900
8050
12000
4
F9.52X14.29X12.7
9.52
14.29
12.7
9000
13300
7100
7.5
F1010
10
14
10
5700
9350
11000
4.2
F10X16X15
10
16
15
6890
11500
7100
12
F1212
12
16
12
6380
10900
7100
6
F12X17X12
12
17
12
8400
11900
7100
8
F12X17X15
12
17
15
9000
12500
7100
10.5
F12X17X18
12
17
18
9800
13500
7100
13
F1512
15
21
12
9700
15900
8100
12
F15X20X12
15
20
12
8400
11900
7100
10
F15X20X16
15
20
16
9500
12800
7100
13.6
F15X20X20
15
20
20
10500
16000
7100
17.2
F1616
16
22
16
14100
25900
7700
17
F1712
17
23
12
10600
21600
7300
13
F1714
17
23
14
12500
22500
7300
15
F1718
17
23
18
13800
24800
7300
21
F1816
18
24
16
15000
29100
6900
18
F2014
20
26
14
15800
40500
6900
17
F2020
20
26
20
18800
42500
6900
26
F20X26X25
20
26
25
20500
35500
6300
33
F2516
25
32
16
18700
37900
5100
28
F2522
25
32
22
11000
16500
5100
40
F25X32X25
25
32
25
11500
18500
5100
43
F25X33X08
25
33
8
12200
16800
4300
16.7
F2820
28
35
20
25700
58300
4600
118
F3020
30
37
20
26800
62500
4300
42
F30X38X16
30
38
16
25500
57500
4600
37.5
F30X38X24
30
38
24
28800
64500
4300
37.5
F30X38X32
30
38
32
34500
78900
4300
81.5
F3216
32
39
16
25800
61500
4300
35
F3520
35
42
20
24000
69100
3700
49
F35X43X16
35
43
16
23500
68000
3700
41
F35X43X25
35
43
25
38700
86200
3200
72
F35X43X32
35
43
32
40500
97800
3200
90
F4020
40
47
20
30300
82600
3300
56
F4520
45
52
20
30400
90100
2900
62
F5020
50
58
20
35800
98000
2600
78
F60X68X40
60
68
40
50200
145000
2600
185
