1200 1200K

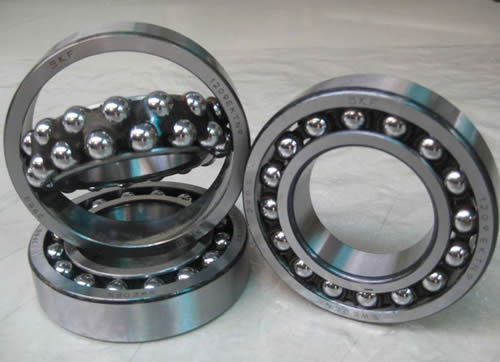

self-aligning ball bearing has two rows of balls and a common concave sphered raceway in the outer ring. self-aligning ball bearing is consequently self-aligning and insensitive to angular misalignments of the shaft relative to the housing. self-aligning ball bearing is particularly suitable for applications where considerable shaft deflections or misalignment are to be expected. Additionally, the self-aligning ball bearing has the lowest friction of all rolling bearings, which enables it to run cooler even at high speeds. self-aligning ball bearing is Widely used in machinery of mining, power, and textile etc
|
WGD Bearing No. |
Boundary dimensions |
Basic load ratings(kN) |
Limiting speed |
Mass | |||||
|
mm |
Dynamic |
Static |
rpm |
kg | |||||
|
d |
D |
B |
rsmin |
Cr |
Cor |
Grease |
Oil |
≈ | |
|
1200 |
10 |
30 |
9 |
0.6 |
5.5 |
1.19 |
21,000 |
24,000 |
0.033 |
|
1201 |
12 |
32 |
10 |
0.6 |
5.6 |
1.27 |
18,000 |
22,000 |
0.04 |
|
1202 |
15 |
35 |
11 |
0.6 |
7.45 |
1.75 |
16,000 |
19,000 |
0.049 |
|
1203 |
17 |
40 |
12 |
0.6 |
7.9 |
2.01 |
14,000 |
17,000 |
0.072 |
|
1204 |
20 |
47 |
14 |
1 |
9.9 |
2.61 |
13,000 |
15,000 |
0.116 |
|
1204K |
20 |
47 |
14 |
1 |
9.9 |
2.61 |
13,000 |
15,000 |
0.114 |
|
1205 |
25 |
52 |
15 |
1 |
12.1 |
3.3 |
11,000 |
13,000 |
0.138 |
|
1205K |
25 |
52 |
15 |
1 |
12.1 |
3.3 |
11,000 |
13,000 |
0.135 |
|
1206 |
30 |
62 |
16 |
1 |
15.6 |
4.65 |
9,200 |
11,000 |
0.217 |
|
1206K |
30 |
62 |
16 |
1 |
15.6 |
4.65 |
9,200 |
11,000 |
0.213 |
|
1207 |
35 |
72 |
17 |
1.1 |
15.8 |
5.1 |
8,000 |
9,400 |
0.317 |
|
1207K |
35 |
72 |
17 |
1.1 |
15.8 |
5.1 |
8,000 |
9,400 |
0.312 |
|
1208 |
40 |
80 |
18 |
1.1 |
19.3 |
6.55 |
7,100 |
8,400 |
0.414 |
|
1208K |
40 |
80 |
18 |
1.1 |
19.3 |
6.55 |
7,100 |
8,400 |
0.407 |
|
1209 |
45 |
85 |
19 |
1.1 |
21.9 |
7.35 |
6,400 |
7,500 |
0.457 |
|
1209K |
45 |
85 |
19 |
1.1 |
21.9 |
7.35 |
6,400 |
7,500 |
0.448 |
|
1210 |
50 |
90 |
20 |
1.1 |
22.7 |
8.1 |
5,800 |
6,800 |
0.515 |
|
1210K |
50 |
90 |
20 |
1.1 |
22.7 |
8.1 |
5,800 |
6,800 |
0.504 |
|
1211 |
55 |
100 |
21 |
1.5 |
26.8 |
10 |
5,300 |
6,200 |
0.692 |
|
1211K |
55 |
100 |
21 |
1.5 |
26.8 |
10 |
5,300 |
6,200 |
0.679 |
|
1212 |
60 |
110 |
22 |
1.5 |
30 |
11.5 |
4,900 |
5,800 |
0.879 |
|
1212K |
60 |
110 |
22 |
1.5 |
30 |
11.5 |
4,900 |
5,800 |
0.864 |
|
1213 |
65 |
120 |
23 |
1.5 |
31 |
12.5 |
4,500 |
5,300 |
1.13 |
|
1213K |
65 |
120 |
23 |
1.5 |
31 |
12.5 |
4,500 |
5,300 |
1.11 |
|
1214 |
70 |
125 |
24 |
1.5 |
34.5 |
13.8 |
4,200 |
4,900 |
1.24 |
|
1215 |
75 |
130 |
25 |
1.5 |
39 |
15.7 |
3,900 |
4,600 |
1.33 |
|
1215K |
75 |
130 |
25 |
1.5 |
39 |
15.7 |
3,900 |
4,600 |
1.31 |
|
1216 |
80 |
140 |
26 |
2 |
40 |
17 |
3,700 |
4,300 |
1.65 |
|
1216K |
80 |
140 |
26 |
2 |
40 |
17 |
3,700 |
4,300 |
1.62 |
|
1217 |
85 |
150 |
28 |
2 |
49 |
20.8 |
3,500 |
4,100 |
2.06 |
|
1217K |
85 |
150 |
28 |
2 |
49 |
20.8 |
3,500 |
4,100 |
2.03 |
|
1218 |
90 |
160 |
30 |
2 |
57 |
23.5 |
3,300 |
3,800 |
2.51 |
|
1218K |
90 |
160 |
30 |
2 |
57 |
23.5 |
3,300 |
3,800 |
2.47 |
|
1219 |
95 |
170 |
32 |
2.1 |
64 |
27.1 |
3,100 |
3,600 |
3.1 |
|
1219K |
95 |
170 |
32 |
2.1 |
64 |
27.1 |
3,100 |
3,600 |
3.05 |
|
1220 |
100 |
180 |
34 |
2.1 |
69 |
29.7 |
2,900 |
3,400 |
3.7 |
|
1220K |
100 |
180 |
34 |
2.1 |
69 |
29.7 |
2,900 |
3,400 |
3.64 |
|
1221 |
105 |
190 |
36 |
2.1 |
74.5 |
32.5 |
2,800 |
3,300 |
4.34 |
|
1222 |
110 |
200 |
38 |
2.1 |
80.5 |
35.5 |
2,600 |
3,100 |
5.15 |
|
1222K |
110 |
200 |
38 |
2.1 |
80.5 |
35.5 |
2,600 |
3,100 |
5.07 |
